Razor Wire

Products Type:
Single Coil / Cross Type Concertina Razor Wire,

Flat Razor / Welded Razor / PVC Coated Razor Wire.
Material: Hot dip galvanized sheet and wire, Stainless steel sheet and wire.
Specification: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65.
HS code: 73130000

Brand Name:
FURUI METAL
Place of Origin: Anping, Hebei, China.
Quality Inspection: ISO9001:2000、ISO14001、CNAS、SGS
Payment Terms: T/T or L/C
Port: Xingang, Tianjin, China





Razor wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire, with its unique appearance and security, razor barbed wire can achieve excellent protection and screen effect.

The mainly material of razor barbed wire are galvanized steel plate and stainless steel plate. It is mainly used in the protection of garden apartment, Government agency, jail, sentry, frontier defense etc. Because the formation of the razor barbed wire is unique which is not easy to touch, the effect of defense and isolation is wonderful.
razor wire

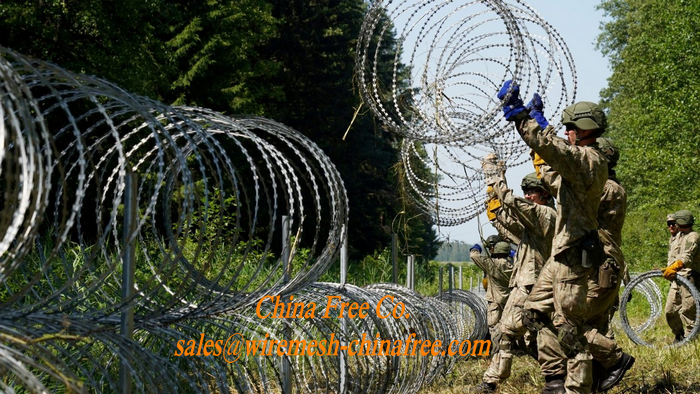

Concertina Razor Wire is a new and popular defence product all over the world, normally used together with barbed wire, chain link fence and welded mesh fence for defence of important places.

Razor wire used in many high security applications, It is typically found in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, governments buildings or other security facilities, also used for division of railways, highways, etc, as well as agricultural fencing.

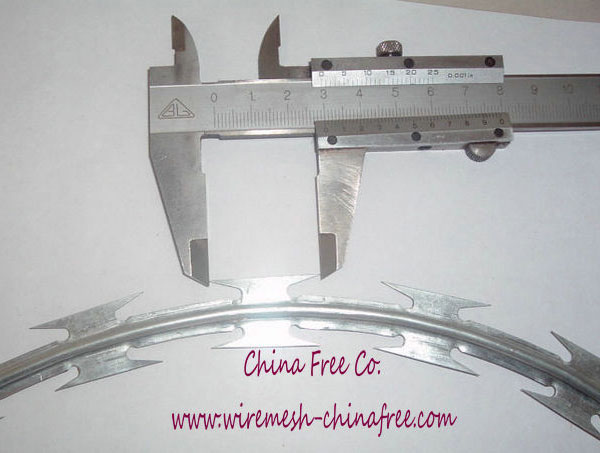

Specification for razor wire:
Razor Type Thickness(mm) Core Wire Diameter(mm) Barb Length(mm) Barb Width(mm) Barb spacing(mm)
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.1 28±1 15±1 45±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±2

Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.

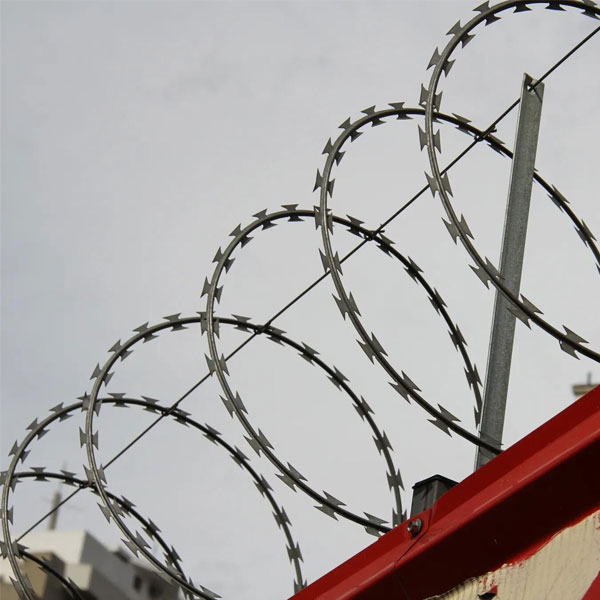

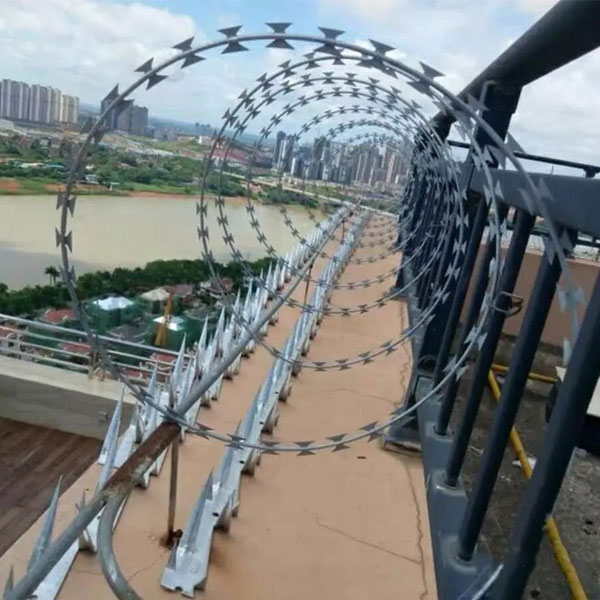

5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching extremely difficult.
Applications:

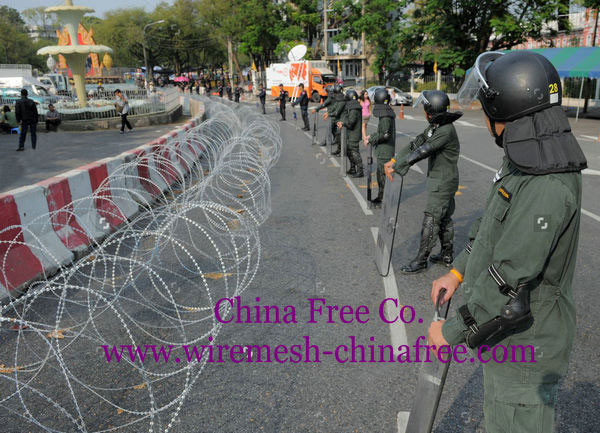

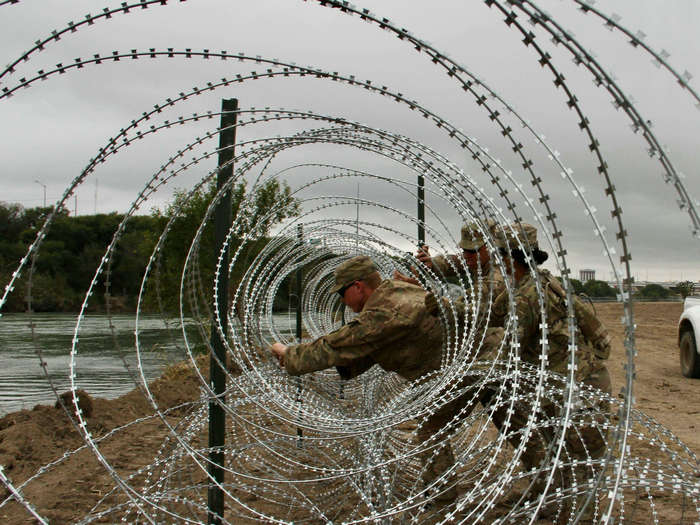

Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

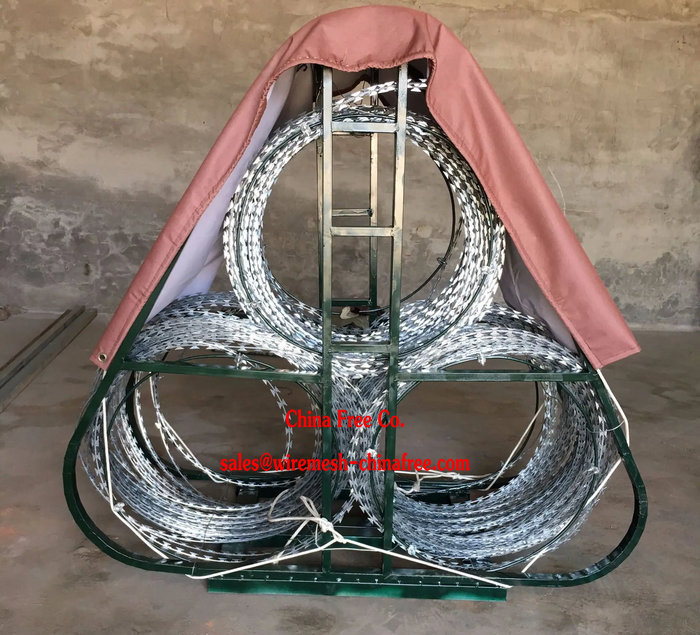

Coil Outside Dimension:
Coil Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm 33 7-8 m CBT 60, 65 Single Coil
500mm 56 12-13m CBT 60, 65 Single Coil
700mm 56 13-14m CBT 60, 65 Single Coil
960mm 56 14-15m CBT 60, 65 Single Coil
450mm 56 8-9m(3 clips) BTO 10.12.18.22.28.30 Cross Type
500mm 56 9-10m(3 clips) BTO 10.12.18.22.28.30 Cross Type
600mm 56 10-11m(3 clips) BTO 10.12.18.22.28.30 Cross Type
600mm 56 8-10m(5 clips) BTO 10.12.18.22.28.30 Cross Type
700mm 56 10-12m(5 clips) BTO 10.12.18.22.28.30 Cross Type
800mm 56 11-13m(5 clips) BTO 10.12.18.22.28.30 Cross Type
900mm 56 12-14m(5 clips) BTO 10.12.18.22.28.30 Cross Type
960mm 56 13-15m(5 clips) BTO 10.12.18.22.28.30 Cross Type
980mm 56 14-16m(5 clips) BTO 10.12.18.22.28.30 Cross Type

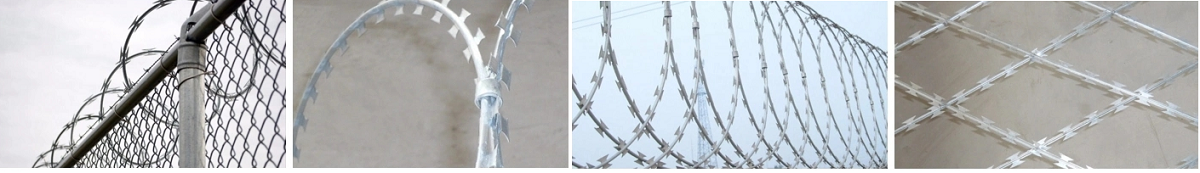

razor wire types

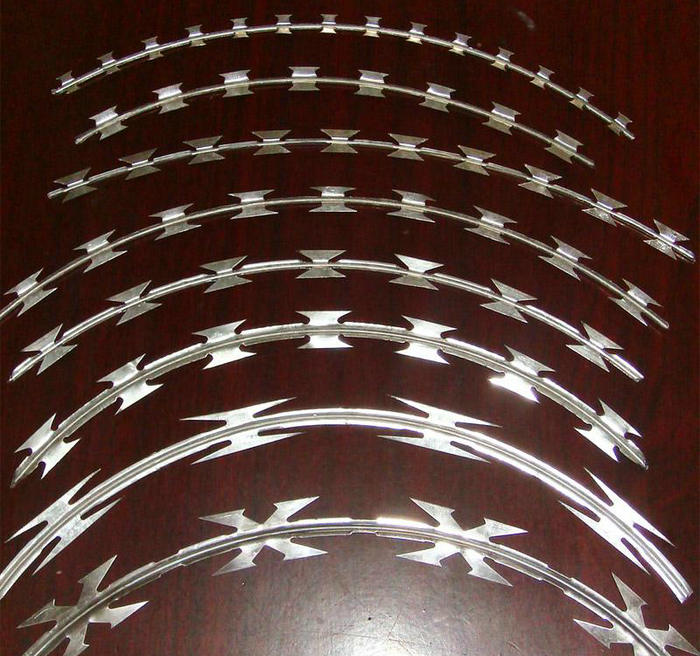

razor wire BTO 10
