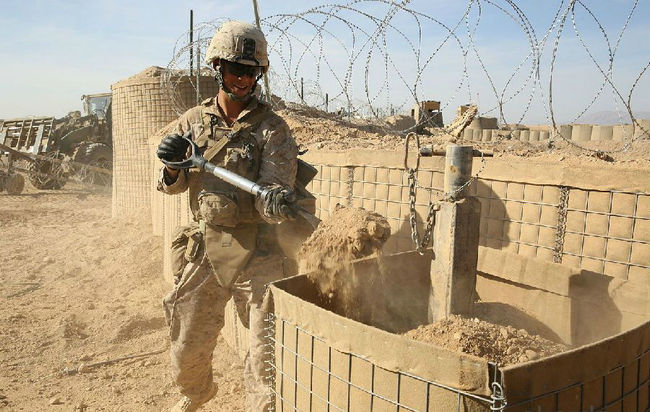

Military Barrier is made of a collapsible welded wire mesh and used as a temporary to semi permanent dike or barrier against blast or smail. It can protection personnel, property or environment.
Military Barrier specifications
1.The wire diameter: 3mm-6mm
2.The aperture: 50mm*50mm,75mm*75mm,
3.The material: high galvanized iron wire or zinc-5% aluminum wire
4.The welded process: galvanized after welded or welded after galvanized
5. Panel size: 13 type size for any security protection, suddenly burst attacks
6.The zinc coated: 250g/m2 - 400g/m2
7.Geotextile: in heavy duty non-woven polypropylene,
8.Color: Grey and Military Green, Sand color etc.
9. Packing: wrapped with shrink film or packed in pallet.
| Type | Height(m) | Width(m) | Length(m) | Cells |
| CF-1 | 1.37 | 1.06 | 10 | 4+5cells |
| CF-2 | 0.61 | 0.61 | 1.22 | 2cells x 2 |
| CF-3 | 1.0 | 1.0 | 10 | 5cells x 2 |
| CF-4 | 1.0 | 1.5 | 10 | 5cells x 2 |
| CF-5 | 0.61 | 0.61 | 3.05 | 5cells x 1 |
| CF-6 | 1.68 | 0.61 | 3.05 | 5cells x 1 |
| CF-7 | 2.21 | 2.13 | 27.74 | 4+4+5cells |
| CF-8 | 1.37 | 1.22 | 10 | 4+5cells |
| CF-9 | 1.00 | 0.76 | 9.14 | 6cells x 2 |
| CF-10 | 2.12 | 1.52 | 30.5 | 5cells x 4 |
| CF-11 | 2.74 | 1.06 | 3.3 | 3cells x 1 |
| CF-12 | 2.10 | 1.06 | 33 | 5cells x 6 |
Application:
Perimeter security and defensing walls
Equipment revetments
Explosive and contraband search areas
Personnel and material bunkers
Observation points
Defensive firing positions
Highway checkpoints
Border crossing checkpoints
Protection existing structures
High way traffic management
Flood control
Water courses
Emergency flood deployment
Erosion control
