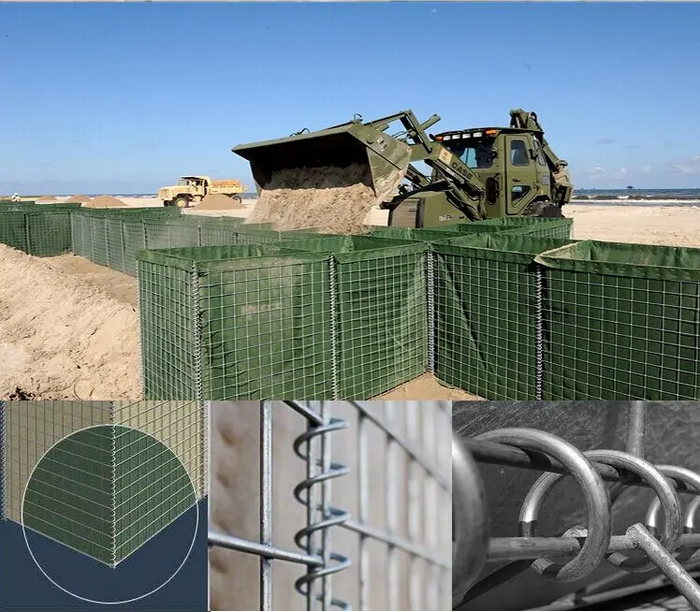

Hesco barrier can be extended and joined using the provided joining pins. It is easy install with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, military hesco barrier is widely used for military fortification and flood control.

1. Wire Diameter of Mil 1 Hesco Basket , Hesco Bastion: 4.0mm , 5.0mm
2. Hole Size of Mil 1 Hesco Basket , Hesco Bastion : 3 Inch x 3 Inch ( 76.2mm x 76.2mm )
3. Geotextile of  Mil 1 Hesco Basket , Hesco Bastion : 300g/sqm
4. Geotextile Color : Green , Grey , Sand , etc.

Flat-packed individual unit dimensions & weights of Mil 1 Hesco barrier , Hesco Bastion
Height: 10"(0.25m)
Width: 3'10"(1.17m)
Length: 4'6"(1.37m)
Cell: 9cells(4+5)
Weight:149KG

Pallet information of Mil 1
Units per pallet: 7
Height:7'4"(2.24m)
Width:3'9"(1.14m)
Length:4'7"(1.40m)
Weight:1083KG

Transport information of Mil 1
20' container: 8 pallets=56units
Deployed length: 560m
40' container:16 pallets=112units, deployed length: 1120m

Applications:
1. Perimeter security and defence walls
2. Equipment revetments
3. Personnel and material bunkers
4. Observation points
5. Defensive firing positions
6. Entry control points
7. Guard posts
8. Explosives and contraband search areas
9. Highway checkpoints
10. Border crossing checkpoints
11. Protecting existing structures
12. Highway traffic management
13. Hostile vehicle mitigation

Usage of military hesco barrier
Perimeter security and defense walls
Equipment revetments
Personnel and material bunkers
Observation points
Defensive firing positions
Guard posts
Protection engineering of seaside area
Highway checkpoints
Border crossing checkpoints
Protecting existing structures
Flood control retaining wall
Coastal erosion
