China PVC Coated Curvy Fence Panel Factory - CF Co.

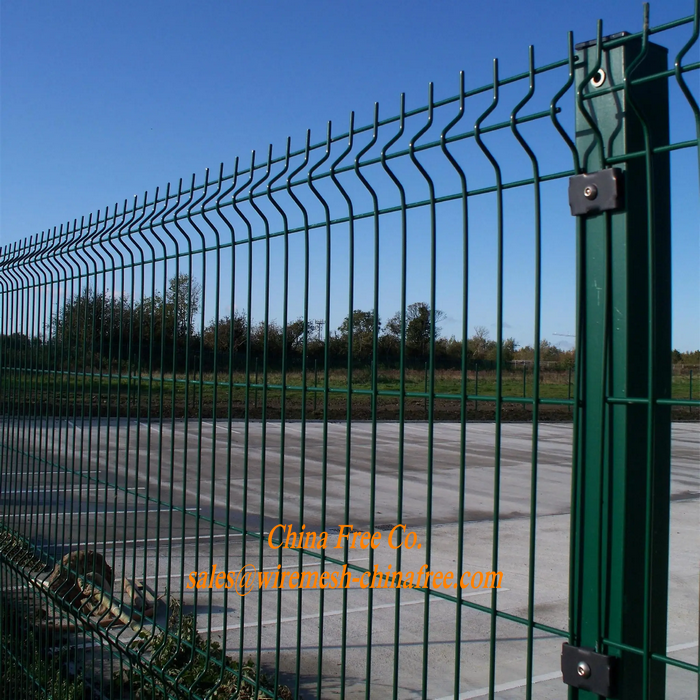

Curvy fence panel is a security and attractive fence with beautiful appearance, and it is ideal for residential area and entertainment venues.

Curvy fence panel can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition, curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand.

With stable, durable and flexible structure, curvy fence panel is widely used as fence in airport, school, factory, residential area, garden, warehouse, stadium, military venue and entertainment place. We can install the lower curvy fence panel in general place, but in military venue or prison, the height of curvy fence panel should be higher, you can choose the suitable height according to your application.

High strength, the triangular structure makes the panel more strong and rigid.
Anti-corrosion, anti-rust and weather resistance.
High visibility.
Beautiful appearance, the V-shaped bending curves and various colors make curvy fence panel attractive.
Can be installed in many lands, such as concrete, slope, general land surface, sand or rock.
Easy to install, curvy panel fence can be easily connected with the post.
Long lifespan, the coating covers the entire panel and accessories.

Specification – Curvy fence panel
Material carbon steel wire, stainless steel wire.
Surface treatment: galvanized, polyester coated, PVC coating.
Wire diameter : 2–6.5 mm.
Spacing between vertical wire (mm): 50, 55, 60, 75, 80.
Spacing between horizontal wire (mm): 50, 100, 150, 200.
Panel width 1.5–4.0 mm.
Panel height :0.6–3.0 m.
Color: RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color can be customized.
Installation method flange or directly buried in the ground.

Specification – Curvy fence post
Material high grade steel for maximum strength and rigidity.
Post type square, round, peach.
Post dimension
Square (mm): 40 × 40, 50 × 50, 60 × 60, 70 × 70.
Round (mm): 38, 40, 42.
Peach (cm): 5 × 7, 7 × 10.
Post plate thickness 1.0–3.0 mm.
Color same as panel.
Post cap metal cap or plastic cap.
