Conveyor Belt for River Weed & Defoliation Cleaning
Conveyor belt can be used for river weed and defoliation conveys weed trash from fishing boats to shore.
Below is a brief description of the belt conveyor detailed data, for your reference when purchasing in the future:
Width of conveyor belt: 2m
Conveying length: 50m
Pitch of conveyor chain: 50.8mm
Wire diameter: 1.5mm
Pitch and pitch of series wire: 15mm*25mm
Series shaft diameter: 10mm
The spacing between series axles is 203.2mm.

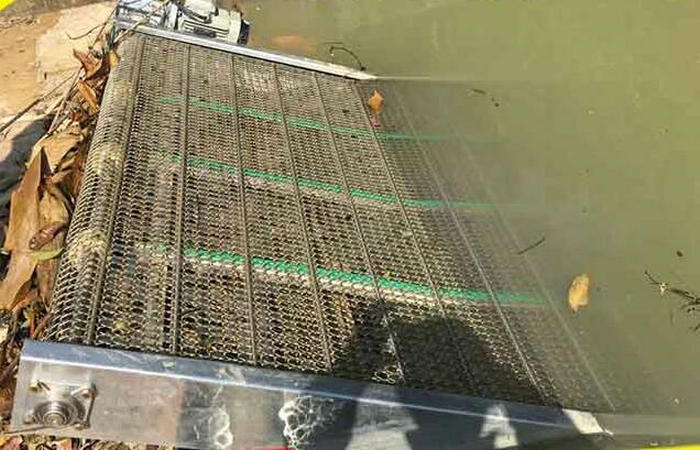

Because the weeds conveyed also contain a large amount of seawater, 304 stainless steel with good acid and alkali resistance is used as the material of the conveyor belt.
The conveying length of the stainless steel conveyor is 50 meters. Considering that the conveying line is too long to be installed and used easily, we divide the conveyor into two parts, one is 20 meters and the other is 30 meters. The height of the conveyor is 1.2 meters. The conveying frame is made of carbon steel and the surface is painted, which can achieve better anti-corrosion effect.
