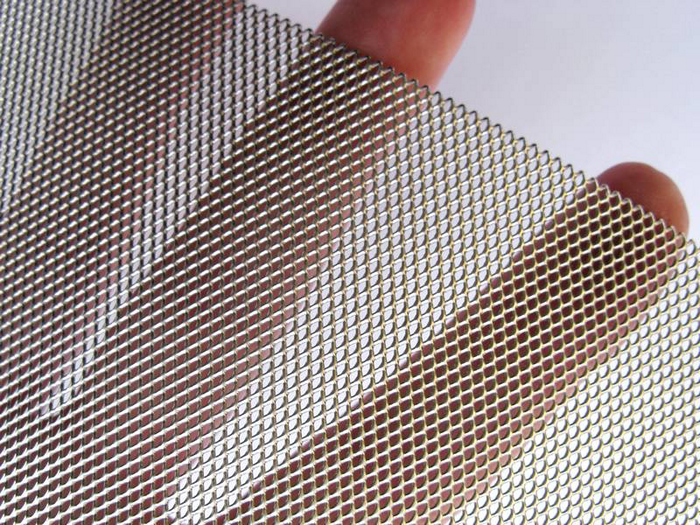

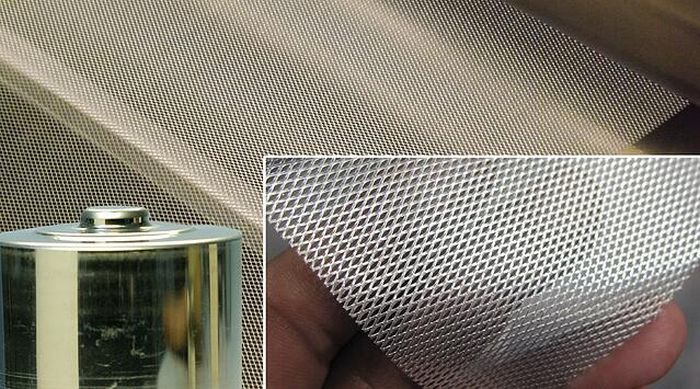

We offers expanded metal mesh for battery electrode applications. It serves as a collector and also provides electrical connection points for external circuits. It is mainly used in batteries, like Ni-MH battery, Ni-Cd battery and lithium ion cells, etc.

Applications:

Battery Current Collector

Battery Support Structure

Our Advantages:

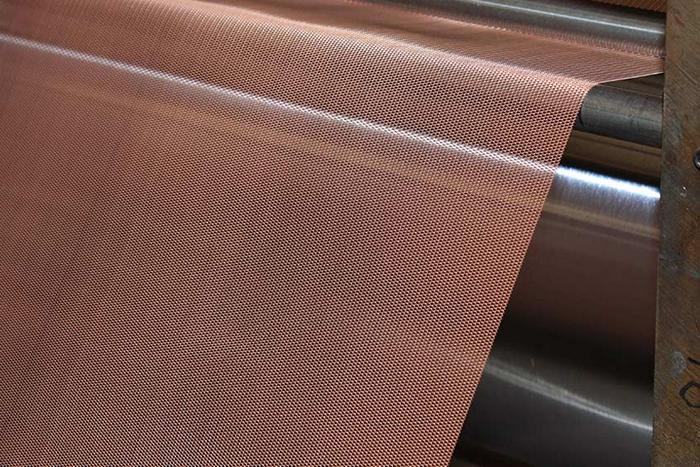

We provide wide range of alloys available in the industry, such as nickel, copper, aluminum, nickel coated stainless steel plate, Tin, Zinc, Titanium and silver, etc.

We provide custom slitting, blanking, heat treatment and edge treatment options.

We control the quality precisely: we control the mesh’s area density, thickness, opening, strength; our product does not have black spot, oil stains, wrinkle, connected hole and breaking stick. It is flat and clear diamond.

Specifications:

Mesh size starting at TL1mm x TB2mm

Base material thickness down to 0.04mm

Widths to 400mm

Factors need to be considered when you choose the expanded metal mesh for battery electrode:

Resistivity.

Surface Area

Open Area

Weight

Overall Thickness

Material Type

Battery Life

Expanded Metal Mesh Specifications for Battery Electrode:

Battery Chemistry	LiM02	Lis02	Li/S0Cl2	Zinc/Air	Aluminum-Air	Mg-AgCl	Ag Zn	Ni Zn	Li Ion	Li Lon Polymer	NiMH
Typical Metals	SS & Al	Al	Ni & SS	Ni	Ni	Cu	Ag	Cu & Ni	Al & Cu	Al & Cu	Ni & NiPlFe
Metal Thickness	.003-.005"	.004-.005"	.003-.005"	.002-.005"	.003-.005"	.004-.005"	.003-.005"	.003-.005"	.001-.002"	.0015-.002"	.003-.005"
Strand Width	.005-.015"	.008-.020"	.005-.025"	.003-.010"	.004-.010"	.015-.020"	.005-.010"	.005-.010"	.002-.005"	.005-.010"	.005-.020"
LWD	.031-.125"	.077-.125"	.050-.284"	.050-.077"	.050-.100"	.125-.189"	.050-.125"	.050-.125"	.020-.050"	.050-.125"	.050-.125"
