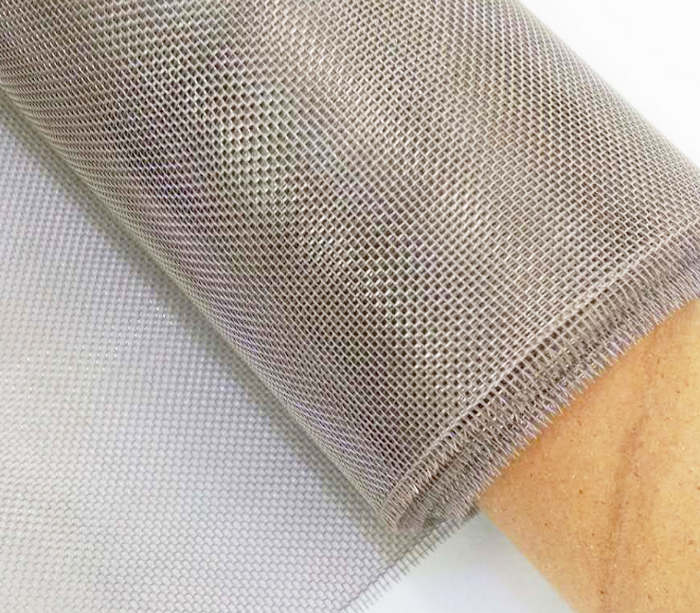

20 Mesh Wire Dia. 0.4mm Stainless Steel Wire Mesh

Stainless steel wire mesh, also known as stainless steel mesh, stainless steel filter mesh, stainless steel wire cloth, stainless steel dense mesh, stainless steel mat mesh, etc.

Production process: The radial and weft wire diameters are the same, each diameter wire crosses through every two weft wires, and each weft wire crosses every two diameter wires up and down.
Weaving method: plain weave, twill weave, mat weave.

Material: SUS201, SUS304, SUS304L, SUS316, SUS16L and austenitic stainless steel series.
Weaving process: plain weave and twill weave. The twill weave process bears more tension than the plain weave process. Plain weave and twill weave have square hole nets and mat-type nets. The warp and weft meshes of the square-hole nets are the same. The number of warp and weft mesh is different, the number of weft mesh is greater than the number of warp mesh, and the mat type mesh has a filtering accuracy that cannot be achieved by the square hole mesh.



The specifications of the stainless steel wire mesh are different due to different materials and processes.

Stainless steel filter 201 material specifications are: square hole mesh 1 mesh - 200 mesh. Mat type mesh (stainless steel dense mesh) 30 mesh -1200 mesh

Stainless steel filter 304 material specifications are: square hole mesh 1 mesh - 400 mesh. Mat type mesh (stainless steel dense mesh) 30 mesh - 2000 mesh

Stainless steel filter mesh 316 material specifications are: square hole mesh 1 mesh - 635 mesh. Mat type mesh (stainless steel dense mesh) 30 mesh-2800 mesh

Stainless steel nickel alloy material specifications are: square hole mesh 1 mesh - 250 mesh. Mat type mesh (stainless steel dense mesh) 30 mesh -1000 mesh

The specifications of pure nickel, pure titanium, pure copper and pure tungsten wire mesh are: square hole mesh 1 mesh-250 mesh. Mat mesh 30 mesh -1000 mesh.

stainless steel wire mesh



Width: common width: 1m, 1.2m, 1.5m, more than 2m to 6m can be processed and ordered.

Length: 30 meters or 30.5 meters, according to customer requirements.

Shape: rolled, and can be punched into square sheets, round sheets and other shapes, and can also be processed into other filter materials.

Packing: generally packed in kraft paper and covered with plastic bags.

Performance: acid resistance, alkali resistance, tensile strength, etc.



Uses: Used for screening and filtering under acid and alkali environment conditions, as mud net in petroleum industry, as sieve filter net in chemical fiber industry, as pickling net in electroplating industry. It can also be used in various fields such as petroleum, chemical industry, construction, textile, aviation, aerospace, railway, highway, aquatic product, aquaculture, metallurgy, coal, mining, light industry, decoration, agriculture, forestry, park, machinery, etc. Sound insulation walls, roofs, powder beds, large mine screens, electronics industry and household appliances, motor fan blade covers, air filters and heat dissipation treatment, machine tool and automotive equipment supporting products.
