PVC Coated Welded Wire Mesh Fence - China Factory

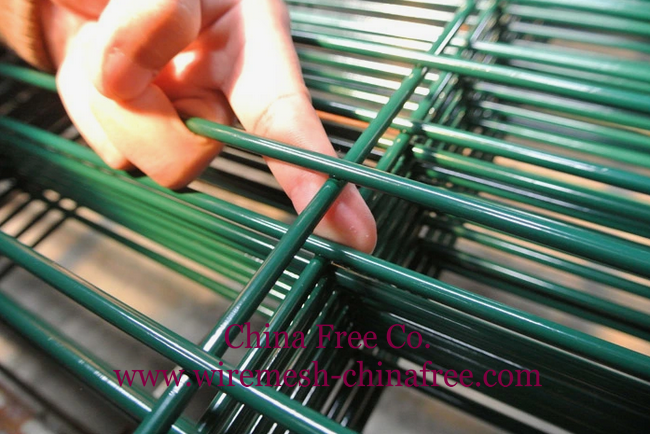

PVC Coated Welded Wire Mesh Fence is made of high quality of welded galvanized iron wire mesh, to be coated with PVC powder by advanced automatic equipments. The coated layer is even, strong adhesiveness and bright luster with good anti-corrosive prosperity.

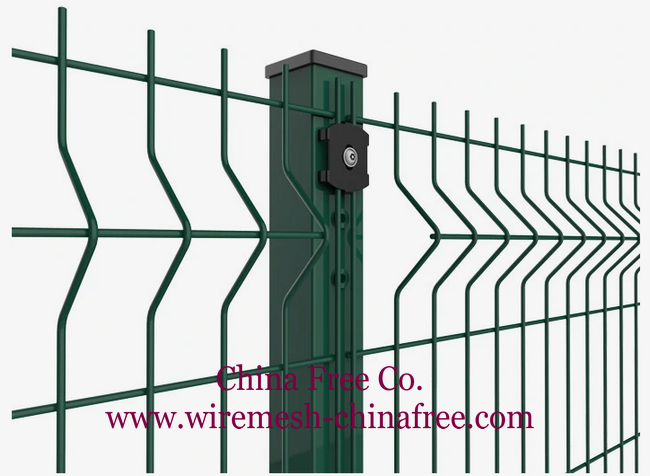

The panels feature 'V' shaped beams at the top, centre and bottom edges, which not only enhance the appearance but also provide an integral support spanning between the posts.Welded wire mesh fence is consist of wire mesh fence panel ,fence post and clamp and bolts.

Material : Low carbon steel, hot galvnaized steel
Height : 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm
Post distance:  2000mm, 2500mm
Wire diameter :4.0mm, 4.5mm, 5.0mm, 6.0mm
Mesh size: 50 x 200mm
Post Square post: 50 x 50mm, 60 x 60mm, 80 x 80mm
Rectangle post: 40 x 60mm, 40 x 80mm, 50 x 70mm
Peach post: 50 x 70mm, 70 x 100mm
I post: 44 x 70mm, 55 x 100mm
Surface treatment:  Low carbon steel+hot dipped galvanized, Hot galvanized steel+powder coated, Hot galvanized steel+pvc coated
Color : dark green, black, white, yellow, grey, blue and so on

Welded Wire Mesh Fence Applications:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
