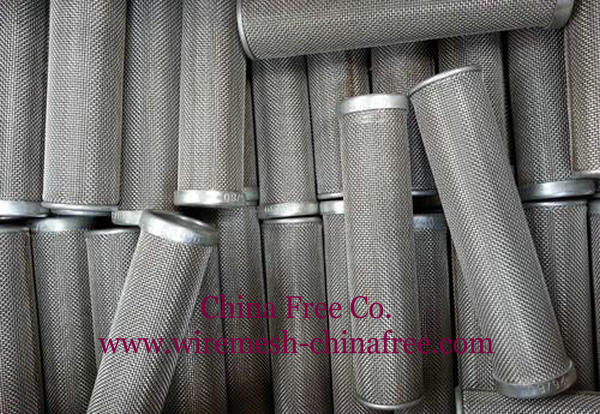

Wire Mesh filter tube is the simplest kind of filter tube, which can be used in various industries. The filtering range is determined by the stainless steel wire mesh. The wire mesh can be customized according to the use range and filtering range.
We usually use stainless steel woven mesh 304, 304L, 316, 316L as plain, twill, Dutch woven pattern filter media to achieve a variety of aperture and performance.
Characteristic: The wire mesh filter tube has excellent wear resistance, heat resistance, acid and alkali resistance and corrosion resistance.
Take the cylindrical wire mesh filter tube made of 0.5mm stainless steel wire mesh as an example

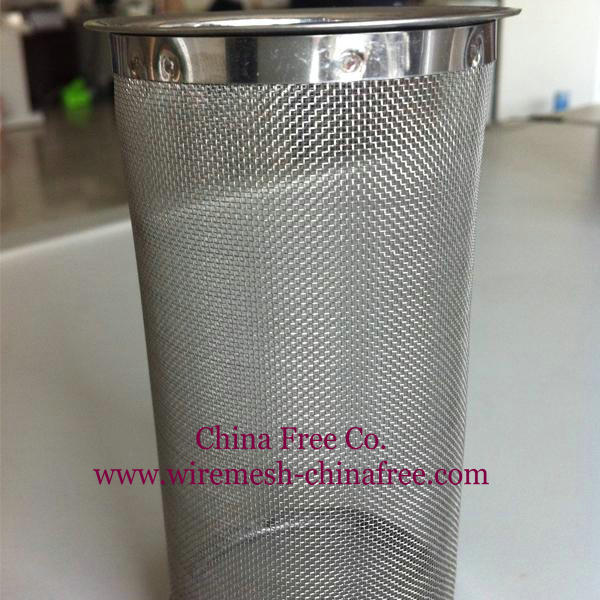

Stainless steel wire mesh filter tube.
The minimum overlap of joint edge is 3.0 mm.
The diameter of the finished product is 21.00 / 20.60mm.
The total length is 49.50 + 0.20 mm / - 0.10 mm.
The edge and both ends of silver solder are connected.
The filtering range is determined by the screen mesh. The filter mesh can be customized according to the industry and filtering range. In addition, the reinforcement production of the screen filter pipe and the connection mode of the pipe orifice can be selected according to the different use conditions.
The wire mesh filter tube can be used as filter accessories in chemical industry, medicine, petroleum, telecommunication and scientific research institutions.
