14x88 Mesh Twill Woven Wire Mesh for Separate Milk Oil

Stainless steel woven wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.

For 14x88 mesh,warp mesh count is 14 mesh (that means 14 wires per inch) and weft mesh count is 88 mesh (that means there are 88 wires per inch). Warp wire diameter is 0.51 mm which is larger than weft wire and each warp wire passes alternately over and under each weft wire.

Mesh Counts:14x88 Mesh
Wire Diameter (D): 0.50 x 0.33mm
Aperture (L):220-240 micron
Weight:3.25 kgs/m2
Roll Width:1.0m,1.2m
Roll Length: 30m
Material: SS 304,SS 304L, SS 316, SS 316L.


Material Chemical Composition %
  C Si Mn P S Ni Cr Mo
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8-10 18-20 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 9-13 18-20 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10-14 16-18 2-3
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12-15 16-18 2-3

Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration, Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs.
Electronics: Circuit board framework, electronic components, battery acid, radiation module.
Printing: Ink filtration, carbon filtration, purification and other toner.

SS 304 14x88 Mesh Wire Dia.0. 5x0.3 mm Dutch Weave Wire Mesh Features:
The dutch weaves are thick and strong.
Light-tight meshes.
Used primarily in fluid, vacuum, and pressure filtration of liquids and gases.
Precise tolerances.
Tiny curved, triangular tunnel openings.

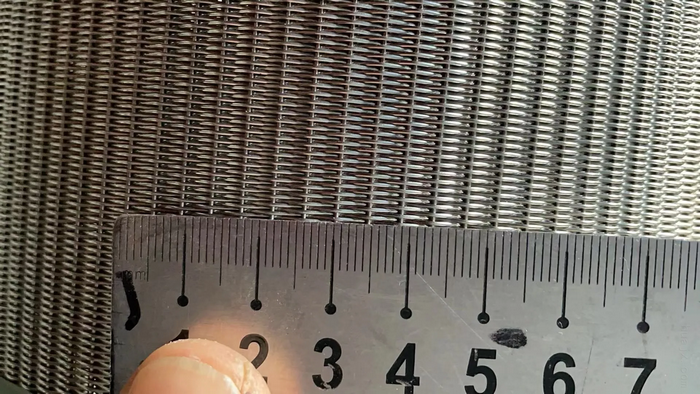

14x88 Mesh Stainless Steel Woven Wire Mesh
